Door Interlock System Integrated with Access Control System

Door control plays a critical role in maintaining the cleanliness of clean rooms by effectively monitoring and controlling clean room entry and egress.These solutions work together with additional clean room technologies to minimize the introduction of contaminants into the controlled environment by ensuring proper airflow management and preventing unwanted substances from entering.


Dor-2100 : Door Controller

One Door Controller with Proximity Sensor for Contactless Operation. Interconnect multiple Controllers on RS-485 bus to build 2-16 Doors interlock System.

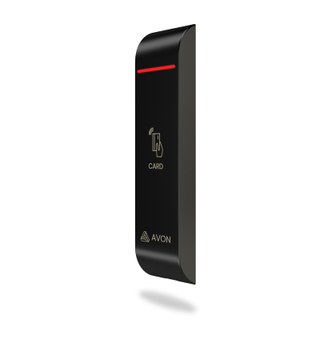

Dor2100 R : Door Controller with Mifare reader.

One Door Controller with built in Mifare Card reader. Interconnect mutiple units of Door-2100R with Dwar series Door Manager on RS485 bus to build 2-16 Doors interlock System.

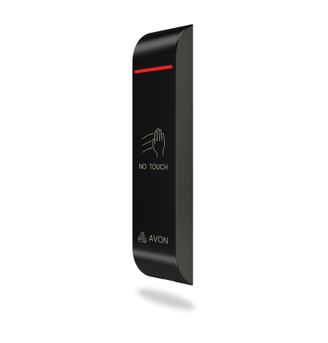

Dor-27 : Door Station , wired

Door Station with onboard Proximity Sensor.Unit is connected to Dor-2100/Dor-2100R using standard wiring.

Dor-27 OSDP : Door Station. OSDP

Door Station with onboard Proximity Sensor. Unit can be configured as slave to Dwar series Door Manager on OSDP.

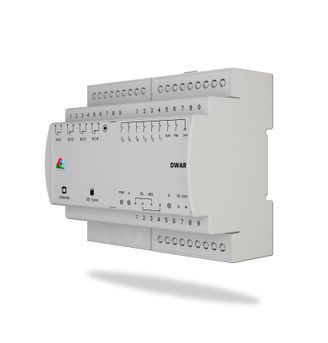

Dwar-01 : Door Manager

Door Interlock Manager for up to 16 Doors, OSDP, Modbus for BMS integration.

Dwar-02 : Door Manager

8 Doors, 12 OSDP Slaves, Access Control and Door Interlock Manager. Modbus TCP for BMS connectivity.

Dwar-03 : Door Manager

16 Doors,16 OSDP readers, Access Control and Door Interlock Manager. Modbus TCP for BMS connectivity.

Dwar-04 : Door Manager

3 Doors,6 OSDP readers, Access Control Door Manager. Modbus TCP for BMS connectivity.

.

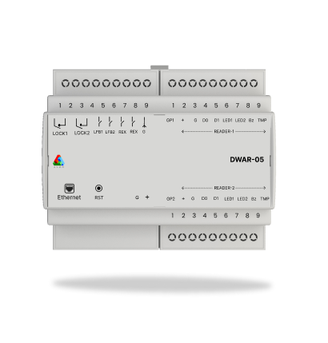

DWAR-05

2 Doors, 2 Wiegand Readers, Access Control Door Manager. Modbus TCP for BMS connectivity.

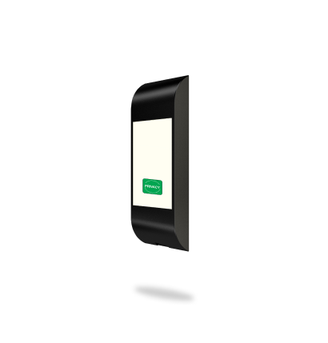

Dor-31 : Request to Exit Station

Request to Exit Station, Contactless.

Dor-32 R : Mifare reader, OSDP

Dor-32R with onboard Mifare Reader, is OSDP v2 compliant reader. It features, RGB LED Control and Buzzer Control for intuitive integration via OSDP.

.

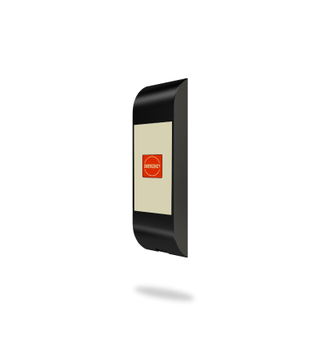

Dor-26 : Emergency Release Station

Dor-28 : Privacy Station

Purpose of Entry

Electromagnetic Lock

Magnetic Contact

Magnetic contact is used as Door Position Sensor to monitor the position of the door.

Power Supply Unit

Switch Mode Power Supply, 100 Watts, Input 160 to 290 VAC, output 24V DC, constant voltage constant current o/p characteristic.

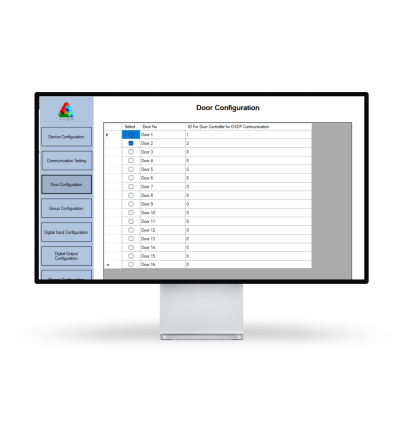

Dwar Server Software

Web Server which can be installed in the local network or cloud.
